    Probe Card for Semiconductor Testing - SEMISHARE Prober

    Our extensive range of cutting-edge probe card at SEMISHARE boosts your semiconductor testing efficiency. All designed for good performance and reliability.

    SEMISHARE: Revolutionizing Semiconductor Testing with Advanced Probe Card Technology

    In the ever-evolving landscape of semiconductor technology, the importance of precise and reliable testing cannot be overstated. At the heart of this critical process lies the probe card, a sophisticated tool that serves as the interface between test equipment and semiconductor devices. SEMISHARE, a leader in semiconductor testing solutions, is at the forefront of probe card innovation, offering cutting-edge products that are reshaping the industry standard for accuracy, efficiency, and reliability.

    Understanding the Probe Card: A Cornerstone of Semiconductor Testing

    What is a probe card used for? A probe card is an essential component in semiconductor testing, designed to establish electrical contact with the device under test (DUT), typically a wafer or chip. This critical tool facilitates the transmission of test signals and the collection of performance data, enabling engineers to comprehensively assess the functionality, reliability, and overall quality of semiconductor devices.

    SEMISHARE's probe card technology takes this fundamental concept to new heights, offering unparalleled precision and versatility in semiconductor testing. Our advanced probe cards are engineered to meet the exacting demands of modern semiconductor manufacturing, from high-volume production to cutting-edge research and development.

    The Cost-Effectiveness of High-Quality Probe Cards

    How much does a probe card cost? The price of a probe card can vary significantly based on several factors, including its complexity, materials used, the number of probes, and specific testing requirements. While high-precision probe cards with specialized features may command a higher initial investment, SEMISHARE believes in providing value that extends far beyond the price tag.

    Our probe cards are designed with longevity and performance in mind, offering:

    1. Extended lifespan through robust construction and premium materials

    2. Improved testing accuracy, reducing costly errors and retests

    3. Increased throughput, enhancing overall production efficiency

    4. Versatility to handle a wide range of testing scenarios, reducing the need for multiple specialized cards

    By investing in SEMISHARE's high-quality probe cards, semiconductor manufacturers can achieve significant long-term cost savings through improved testing efficiency and reduced equipment downtime.

    Probe Cards vs. Load Boards: Understanding the Distinction

    What is the difference between load board and probe card? While both components play crucial roles in semiconductor testing, they serve distinct functions. A load board provides mechanical support and electrical connections for the device under test, often used in final testing of packaged devices. In contrast, a probe card is specifically designed to make direct electrical contact with the die on a wafer, facilitating wafer-level testing before the chips are cut and packaged.

    SEMISHARE's probe cards excel in their ability to:

    1. Provide precise, repeatable contact with extremely fine pitch pads

    2. Maintain signal integrity at high frequencies

    3. Withstand the rigors of high-volume production testing

    4. Adapt to various wafer sizes and device types

    The Role of Probes in Semiconductor Testing

    What is a probe in semiconductor? In the context of semiconductor testing, a probe is a conductive element, typically a fine needle or pin, that makes electrical contact with specific points on the semiconductor device. These probes are the critical interface between the test equipment and the device under test, enabling the transmission of test signals and the measurement of device responses.

    SEMISHARE's probe technology represents the pinnacle of this crucial component, offering:

    1. Ultra-fine pitch capabilities for testing advanced semiconductor nodes

    2. High-frequency performance for RF and high-speed digital applications

    3. Robust design for extended operational life

    4. Customizable configurations to meet specific testing requirements

    The Purpose and Importance of Probes in Semiconductor Testing

    What is the purpose of a probe? Why is probe important? The primary purpose of a probe is to provide a reliable and precise electrical connection to the test points on a semiconductor device. This connection is crucial for:

    1. Applying test signals to the device

    2. Measuring the device's electrical responses

    3. Verifying functionality across various operating conditions

    4. Detecting defects or performance issues

    The importance of probes in semiconductor testing cannot be overstated. They are the critical link that ensures the accuracy and reliability of test results, directly impacting product quality and manufacturing yield.

    Probe Devices: Enabling Comprehensive Semiconductor Testing

    What does a probe device do? A probe device, such as SEMISHARE's advanced probe cards, is designed to engage with the contact pads or bumps on a semiconductor device. These sophisticated tools enable:

    1. Precise alignment with test points on the wafer

    2. Stable electrical contact throughout the testing process

    3. Efficient signal transmission for accurate measurements

    4. Adaptability to various device layouts and pad configurations

    Why are probes needed? Probes are essential for performing detailed electrical testing on semiconductor devices for several reasons:

    1. They allow for non-destructive testing of devices before packaging

    2. They enable parallel testing of multiple dies, increasing throughput

    3. They provide access to internal nodes that may be inaccessible after packaging

    4. They allow for testing under various environmental conditions

    Advantages of SEMISHARE's Probe Technology

    What are the advantages of probes? SEMISHARE's probe technology offers numerous advantages that set our products apart in the competitive semiconductor testing market:

    1. Exceptional Precision: Our probes maintain accurate contact with even the smallest pad sizes, ensuring reliable test results.

    2. High Durability: Engineered for longevity, our probes withstand millions of touchdowns without degradation in performance.

    3. Versatility: SEMISHARE's probe cards can be customized for a wide range of device types and testing requirements.

    4. Signal Integrity: Advanced materials and design techniques ensure clean signal transmission, even at high frequencies.

    5. Temperature Stability: Our probes maintain consistent performance across a wide temperature range, supporting both low-temperature and high-temperature testing.

    6. Easy Maintenance: Modular design allows for easy replacement of individual probes, reducing downtime and maintenance costs.

    7. Scalability: Our probe card designs can be scaled to accommodate increasing wafer sizes and shrinking device geometries.

    8. Compatibility: SEMISHARE's probe cards are compatible with a wide range of test equipment, providing flexibility in test setup configurations.

    SEMISHARE's Commitment to Innovation in Probe Card Technology

    At SEMISHARE, we are dedicated to pushing the boundaries of probe card technology. Our ongoing research and development efforts focus on:

    1. Advanced Materials: Exploring new probe materials for improved conductivity and wear resistance.

    2. Novel Probe Designs: Developing innovative probe geometries for enhanced contact stability and signal integrity.

    3. Intelligent Probe Cards: Integrating sensors and processing capabilities for real-time performance monitoring and optimization.

    4. High-Density Solutions: Creating probe cards capable of testing increasingly dense and complex semiconductor devices.

    5. Environmental Adaptability: Designing probe cards that excel in extreme temperature and humidity conditions.

    Empowering Semiconductor Innovation with SEMISHARE's Probe Cards

    In the rapidly evolving field of semiconductor technology, the role of precise and reliable testing cannot be overstated. SEMISHARE's advanced probe cards stand at the forefront of this critical process, offering unparalleled accuracy, efficiency, and reliability in semiconductor testing.

    Our commitment to innovation in probe card technology enables semiconductor manufacturers and researchers to push the boundaries of device performance and complexity. Whether you're developing next-generation processors, high-performance memory devices, or cutting-edge sensors, SEMISHARE's probe cards provide the testing capabilities you need to ensure quality, improve yield, and accelerate time-to-market.

    For more information on how SEMISHARE's advanced probe card technology can elevate your semiconductor testing capabilities, visit our website at https://www.semishareprober.com/. Discover the SEMISHARE difference and take your semiconductor development and production to the next level with our state-of-the-art probe card solutions.

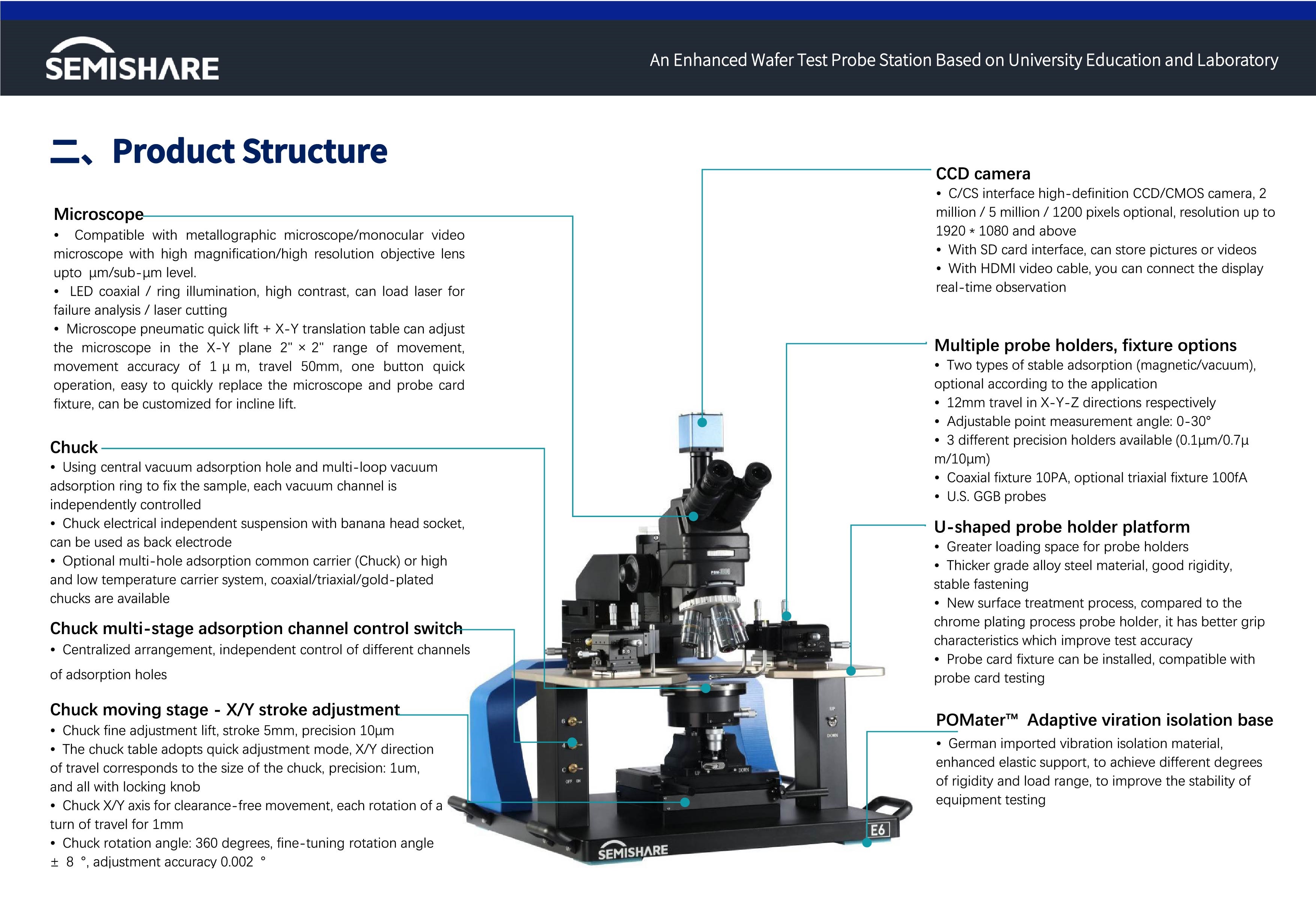

    Produktübersicht Funktionsstruktur Technische Spezifikationen Downloads
    E-Serie Verbesserte Manuelle Probestation

    Product Overview

    E-Serie ist eine erweiterte Funktionalitäts-Probestation, die Tests an Elektrodenpads über 1 µm ermöglicht. Das ergonomische Design sorgt für eine einfache Bedienung, und die flexible modulare UPStart™-Designstruktur erlaubt Kunden die kostengünstige Aufrüstung für zusätzliche Testfunktionen wie Millimeterwellen (mmW), Fehleranalyse (FA), MEMS, WLR und Optoelektroniktests.

    Basisinformationen

    Produktnummer E6 Arbeitsumgebung Open type
    Stromanforderungen 220V,50~60Hz Steuerungsmodus Manual Probe Station
    Produktabmessungen 640mm long *700mm wide *730mm highr Gerätegewicht About 80 kg

    Anwendungsbereich

    Tests der Lichtintensität/Wellenlänge von LD/LED/PD, Tests an Wafer-Dioden und-Transistoren, PCB-Bauteiltests, IV-/CV-Charakterisierungstests von Materialien/Komponenten, Leistungshalbleitertests, MEMS-Tests, RF-Tests usw.

    Technische Merkmale

    > POMater™ adaptive Schwingungsdämpfungsbasis

    Die adaptive Schwingungsdämpfungsbasis ist mit in Deutschland importierten Materialien zur Schwingungsisolation ausgestattet, die die elastische Unterstützung verbessern. Sie bietet variable Steifigkeit und Tragfähigkeit und filtert effektiv Störungen durch Umweltschwingungen, wodurch ein stabiler Kontakt zwischen der Nadelspitze und dem Pad der Probe gewährleistet wird, was die Teststabilität erhöht.

    >Höhenverstellung der Spannvorrichtung

    Die Spannvorrichtung ist fein höhenverstellbar mit einem Verstellbereich von 5 mm und einer Präzision von 10 µm, was eine schnelle Trennung der Probe von der Nadel erleichtert.

    >Schnelle luftgesteuerte Höhenverstellung des Mikroskops

    Die schnelle luftgesteuerte Höhenverstellung des Mikroskops erleichtert den Wechsel von Mikroskopen und Probenkartenhalterungen.

    >Großformatiges Maschinendesign

    Das großformatige Gehäuse erhöht den Bedienkomfort. Die größere Nadelhalterplattform ermöglicht das Laden von Probenkarten und verbessert die Effizienz bei Nadeltests.

    Title

    E series
    Specification
    Model E4 E6 E8 E12
    Dimension
    L: 580mm*
    W: 620mm*
    H: 730mm
    L: 640mm*
    W: 700mm*
    H: 730mm
    L: 660mm*
    W: 660mm*
    H: 700mm
    L: 1030mm*
    W: 820mm*
    H: 730mm
    Weight (about) 70KG 80KG 85KG 180KG
    Electricity Demand 220VC, 50~60Hz
    Chuck Size & Rotation angle 4", 360° Rotation 6", 360° Rotation 8", 360° Rotation 12", 360° Rotation
    X-Y  Travel Range 4" * 4" 6" * 6" 8" * 8" 12" * 12"
    Z Travel Range 6mm (Fast switching) / 6mm (Fine-tune)
    Moving Resolution 10μm
    Sample fixed mode Vacuum adsorption
    Electrical design Electrical Floating with Banana plug adapter, can be used as a backside electrode
    Platen U Shape 6 micropositioners available 8 micropositioners available 10 micropositioners avaible 12 micropositioners available
    Microscope Moving range X-Y : 2" * 2",  Z : 50.8mm
    Moving Resolution 1μm
    Switching lens mode Microscope Manually Tilting 30°by Lever
    Magnification 16~100X/20~4000X
    Lens specification Eyepiece: 10X ; Objective lens : 5X, 10X, 20X, 50X 100XOption
    CCD Pixel 50W (Analog) / 200W (Digital) / 500W (Digital)
    Micropositioner X-Y-Z Moving range 12mm-12mm-12mm / 8mm-8mm-8mm
    Mechanical resolution 10μm / 2μm / 0.7μm / 0.1μm
    Current leakage accuracy Coaxial 1pA/V @25°C; Triaxial 100fA/V @25°C; Triaxial 10pA@3kv @25°C,
    Test conditions: dry environment with ground shielding (air dew point below -40°C)
    Cable connectors Banana head  / Crocodile clip /  Coaxial / Triaxial
    Application IC/LD/LED/PD test, PCB / Packaged device test, RF test etc.
    Optional Accessories Microscope tilt mechanism (Tilting 30°Manually by Lever) Gold-plated chuck
    Microscope pneumatic lifting mechanism Coaxial / Triaxial chuck
    Laser cutting and repairing Chuck quick pull-out mechanism
    Probe clamp Chuck rotation fine adjustment

    Dark field of microscope / DIC / Normarski test, Light intensity

    / wavelength test interface accessory

    Light intensity / wavelength selection
    Liquid crystal leakage analysis package RF Testing accessoriess
    High voltage and high current measurement package Active probe
    Hot chuck Low current / Capacitance test
    High/Low temprature chuck intergration of intergral sphere
    Shielding box Fixture for Fibre optic coupler test
    Special adapter Fixture of PCB / Package test options
    Vibration free table Special Custom design
    Charancteristic 1. Gantry design of the Microscope
    2. The Microscope can be tilted or pneumatic lifted to change objective lens easily
    3. Can be upgraded to do RF, high current testing and laser repair applications.
    4. high moving accuracy
    Characteristics
    Compact design, affordable price Driver Screws: Zero back lash
    Compatible with high magnification metallographic microscope, and can fine tune the movement Available for 1um electrode / PAD probe
    University / Institute / Company laboratory use LD/LED/PD Light intensity / wavelength testing
    Up to 12 inch wafer testing IV/CV Characteristic testing of materials / devices
    Precision  lead screw drive structure, linear movement

    High frequency characteristic test of devices

    (up to 300GHz)
