Wafer Prober Machine Manufacturer Company | SEMISHARE

SEMISHARE is a wafer prober machine manufacturer company on probe station systems, test systems, and laser repair solutions for over 1,000 customers.

SEMISHARE: Pioneering Prober Machine Innovation for Advanced Semiconductor Testing

In the rapidly evolving world of semiconductor technology, the importance of reliable and precise testing equipment cannot be overstated. At the forefront of this critical industry stands the prober machine - an indispensable tool in ensuring the quality and functionality of semiconductor devices before they reach the market. As a leading wafer probe company with over 14 years of experience, SEMISHARE has established itself as one of the preeminent wafer prober manufacturers globally, consistently delivering cutting-edge prober machines that meet the exacting standards of the semiconductor industry.

What is a Prober Machine?

A prober machine, also known as a wafer prober or probe station, is a sophisticated piece of equipment used in the semiconductor industry to test integrated circuits at the wafer level before packaging. This essential device allows manufacturers to identify and isolate defective chips early in the production process, saving time and resources. SEMISHARE's prober machines are designed to perform a wide range of tests, including parametric testing, functional testing, and reliability testing, ensuring that only high-quality chips make it to the final product.

How Does a Wafer Prober Work?

The operation of a wafer prober is a testament to the precision engineering that goes into its design. At its core, a wafer prober works by making precise electrical connections between the device under test (DUT) on the wafer and the testing equipment. This is achieved through a series of intricate steps:

1. Wafer Loading: The silicon wafer is carefully placed on the chuck, a specialized platform within the prober machine.

2. Alignment: The prober aligns the wafer using optical recognition systems to ensure accurate positioning.

3. Probe Card Contact: A probe card, containing numerous tiny probe needles, is lowered onto the wafer, making contact with specific test points on the chips.

4. Testing: Electrical signals are sent through the probes to test various parameters of the chips.

5. Data Collection: The prober machine collects and analyzes the test data, identifying functional and non-functional chips.

6. Wafer Mapping: The results are used to create a wafer map, showing the location of good and bad dies on the wafer.

SEMISHARE's prober machines excel in each of these steps, offering unparalleled precision and reliability in wafer testing.

What is a Probe in Semiconductor Testing?

In the context of semiconductor testing, a probe refers to a conductive needle-like structure used to make electrical contact with specific points on a semiconductor device. These probes are crucial components of the prober machine, serving as the physical interface between the testing equipment and the device under test. SEMISHARE's prober machines utilize state-of-the-art probe technology, ensuring accurate and consistent electrical connections for reliable test results.

How are Silicon Wafers Tested?

Silicon wafer testing is a complex process that involves multiple stages and sophisticated equipment. SEMISHARE's prober machines play a pivotal role in this process, offering comprehensive solutions for wafer-level testing. The testing process typically includes:

1. Visual Inspection: Automated optical inspection systems detect surface defects.

2. Electrical Testing: This is where SEMISHARE's prober machines shine, performing a variety of electrical tests to verify the functionality of each die on the wafer.

3. Parametric Testing: Measuring electrical characteristics to ensure they meet specified parameters.

4. Functional Testing: Verifying that each circuit on the wafer performs its intended function correctly.

5. Reliability Testing: Subjecting the wafer to stress conditions to predict long-term performance.

SEMISHARE's advanced prober machines are designed to handle all these testing requirements with exceptional accuracy and efficiency.

SEMISHARE: A Leader Among Wafer Prober Manufacturers

As a prominent wafer probe company, SEMISHARE has consistently pushed the boundaries of what's possible in semiconductor testing. With a substantial R&D investment exceeding 15% of costs, the company has amassed an impressive portfolio of over 100 patents. This commitment to innovation has solidified SEMISHARE's position as one of the most respected wafer prober manufacturers in the industry.

The company's prober machines are the result of years of research, development, and refinement. Each prober machine that leaves SEMISHARE's 10,000㎡ manufacturing facility is a testament to the company's dedication to quality and precision. From the A Series Full Automatic Probe Station to the X Series Semi-Automatic Probe Station, SEMISHARE offers a comprehensive range of prober machines suited for various testing needs.

Global Reach of SEMISHARE's Prober Machines

SEMISHARE's reputation as a leading wafer probe company extends far beyond its home base. The company's prober systems have found homes in advanced semiconductor facilities across the globe, including the United States, Britain, Germany, Greece, Australia, and Singapore. This extensive international presence is a clear indication of the trust that over 1000 customers worldwide place in SEMISHARE's prober machines.

Innovative Features of SEMISHARE's Prober Machines

What sets SEMISHARE apart from other wafer prober manufacturers is its relentless pursuit of innovation. The company's prober machines incorporate several cutting-edge features:

1. High-Precision Positioning: SEMISHARE's prober machines offer sub-micron positioning accuracy, crucial for testing today's nanoscale semiconductor devices.

2. Advanced Imaging Systems: Integrated high-resolution cameras and machine vision algorithms ensure precise wafer alignment and probing.

3. Temperature Control: The ability to test wafers across a wide temperature range, from cryogenic to high temperatures, allows for comprehensive reliability testing.

4. Automation Capabilities: SEMISHARE's prober machines can be fully automated, increasing throughput and reducing human error in the testing process.

5. Data Analytics: Built-in software for real-time data analysis and wafer mapping provides invaluable insights into the testing process.

The CG Launched Series: A Breakthrough in Prober Machine Technology

Among SEMISHARE's impressive lineup of prober machines, the CG launched series stands out as a true innovation in the field. As the first domestically developed high and low temperature vacuum prober, it showcases SEMISHARE's unique technical advantages in ultra-high vacuum environments and automatic control.

This advanced prober machine is capable of testing semiconductor devices under extreme conditions, making it invaluable for research institutions and manufacturers working on cutting-edge semiconductor technologies. The CG series exemplifies SEMISHARE's position at the forefront of wafer prober manufacturing.

Comprehensive R&D Capabilities

SEMISHARE's success as a wafer probe company is built on a foundation of robust research and development. The company's R&D center is composed of eight specialized systems, covering all aspects of prober machine design and manufacturing:

1. Mechanical Design

2. Optics

3. Software

4. Electrical Engineering

5. Test Application

6. High and Low Temperature Systems

7. Vacuum Technology

8. Laser Systems

This multidisciplinary approach ensures that SEMISHARE's prober machines are not just standalone products, but integrated solutions that address the full spectrum of semiconductor testing needs.

Diverse Product Range

SEMISHARE's product center offers a wide array of prober machines and related equipment, catering to various testing requirements in the semiconductor industry:

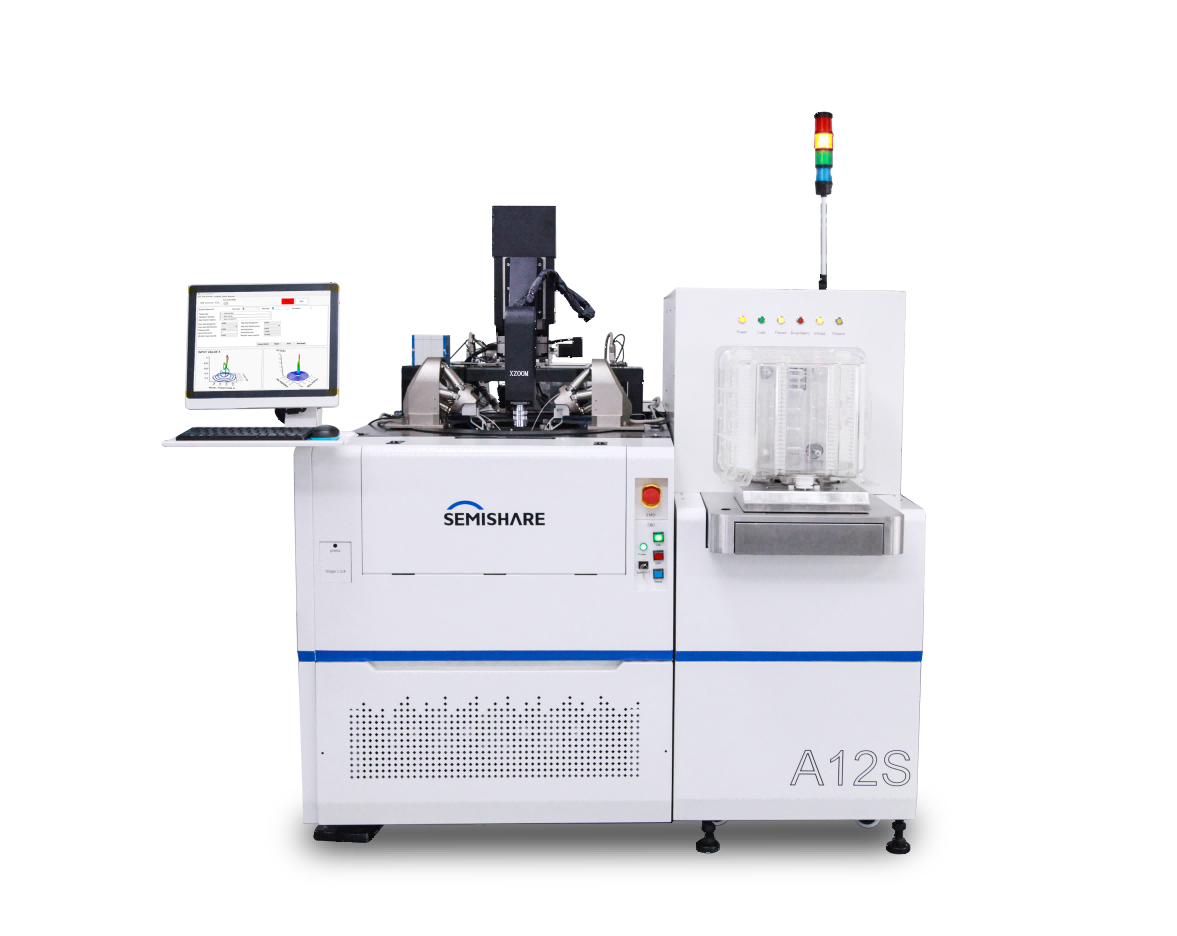

1. Probe Station Systems: These include the A Series Full Automatic Probe Station and X Series Semi-Automatic Probe Station, designed for comprehensive wafer testing, including RF testing and characteristic analysis of I-V and C-V.

2. High and Low Temperature Vacuum Probe Stations: Ideal for testing semiconductor devices under extreme temperature and environmental conditions.

3. Accessories: SEMISHARE offers a range of accessories to enhance the capabilities of its prober machines, including Temperature Chucks, Micropositioners, and Probe Holders.

4. Test Systems: The company also provides complete test systems, such as the Hall Effect System for high-precision measurement of semiconductor materials.

Enhanced Performance Through Accessories

SEMISHARE's commitment to providing comprehensive solutions extends to its range of accessories, designed to enhance the performance of its prober machines:

1. Temperature Chuck: Capable of achieving temperatures as low as -10°C without a cooling machine, this accessory is compatible with all major production probes and can handle test temperatures from -60°C to +300°C.

2. Micropositioner: Available in four precision levels (0.1μm, 0.7μm, 2μm, 10μm), these devices allow for precise probe positioning during testing.

3. Probe Holder: These mechanical devices connect the probe to the signal cable, enabling linear movement in the X-Y-Z directions as the probe station is adjusted.

Value-Added Services

Beyond manufacturing top-tier prober machines, SEMISHARE is committed to providing value-added services to its customers. The SEMISHARE Professional Testing Services (PTS) offer customers the opportunity to experience the company's prober machines firsthand, with top customers receiving free testing experience cards.

Core Technologies Driving Innovation

At the heart of SEMISHARE's success as a wafer probe company are its core technologies. These include:

1. Probe Station Solutions: Comprehensive testing solutions for a wide range of semiconductor devices.

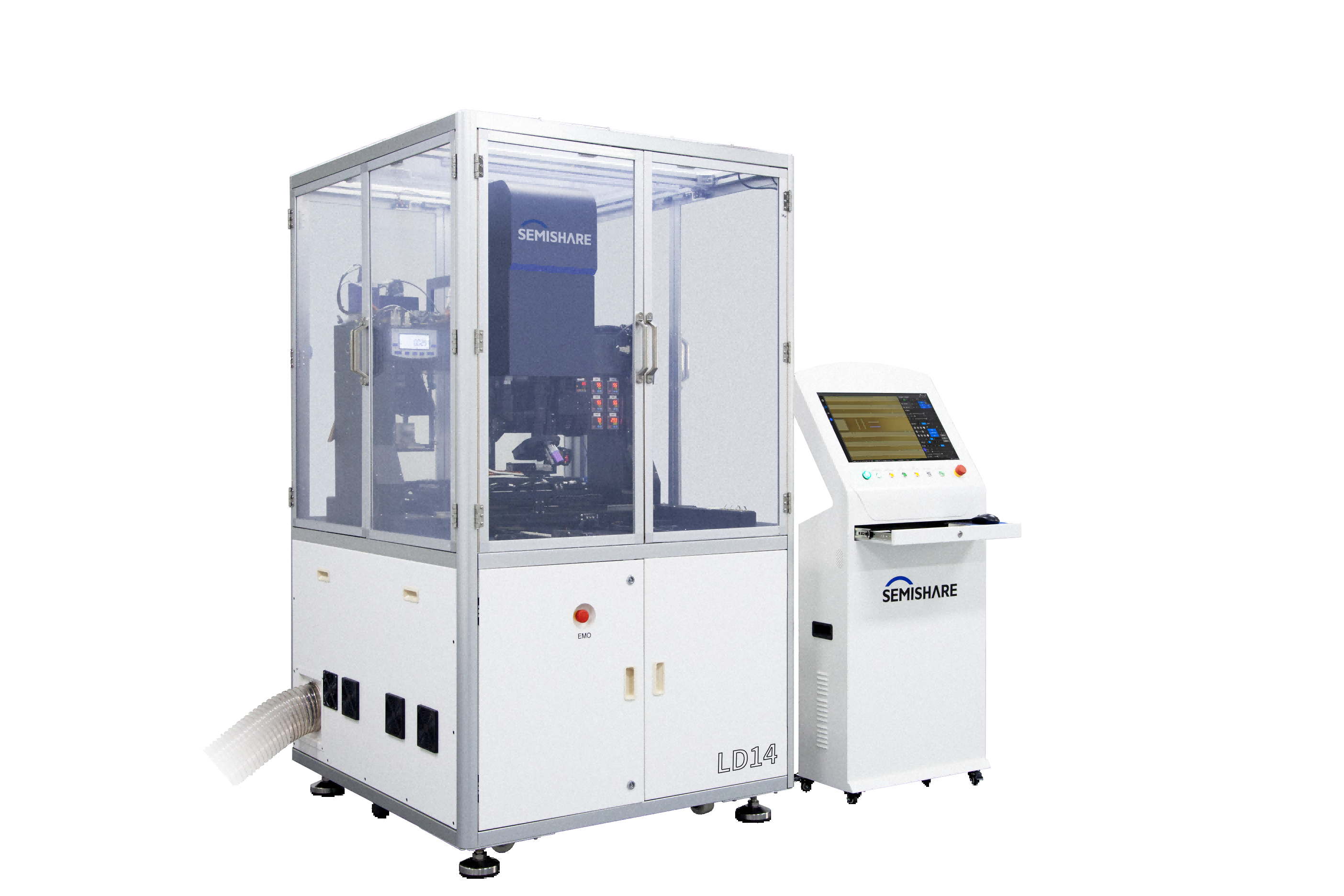

2. Laser System Solutions: Advanced laser repair systems for TFT-LCD and OLED array panel circuits.

3. Test System Solutions: Integrated software systems for high-precision measurement of semiconductor materials.

SEMISHARE's contributions to the field of semiconductor testing have not gone unnoticed. The company's recent listing on the 2023 Shenzhen High-Growth Enterprise TOP100 List, with innovation ability, scale growth, and capital expansion figures of 61.42%, 84.32%, and 88.76% respectively, underscores its rapid growth and industry leadership.

As the semiconductor industry continues to evolve, with devices becoming smaller, more complex, and more powerful, the role of prober machines in ensuring quality and reliability will only grow in importance. SEMISHARE, with its track record of innovation and commitment to excellence, is well-positioned to meet these future challenges.

In the intricate world of semiconductor testing, SEMISHARE stands out as a wafer probe company that consistently pushes the boundaries of what's possible. As one of the leading wafer prober manufacturers globally, SEMISHARE's prober machines represent the pinnacle of precision, reliability, and innovation in semiconductor testing equipment.

From its comprehensive range of prober machines to its cutting-edge accessories and value-added services, SEMISHARE offers a holistic approach to semiconductor testing that sets it apart in the industry. With a global presence, a strong focus on R&D, and a commitment to customer satisfaction, SEMISHARE is not just meeting the current needs of the semiconductor industry – it's shaping its future.

  • 14years+

    Established

  • 15%+

    R&D cost

  • 100items+

    Patents

  • 1000+

    Customers

  • 10000㎡+

    Factory Area

Hall Effect System

Hall Effect System is an integrated software system for high precision measurement of various semiconductor materials.

Core technologiesCore technologies

With the rapid development of science and technology, the technological boundaries of core fields such as 5G communications, aerospace, unmanned driving, artificial intelligence, big data, etc. are constantly being innovated and broken through. Among

Probe Station SolutionProbe Station Solution

In the probe station market, we actively influence and gradually promote the development of China's semiconductor testing equipment industry and market. SEMISHARE has launched alliances and cooperation with other outstanding companies in this field,

Laser system solutionLaser system solution

SEMISHARE and ESI of the United States have become the first in the industry to develop flexscan technology for BM repair and DM repair for the above-mentioned pixel highlights. We repair or dilute it by laser line cutting, welding
